Настройка телефонного аппарата Cisco 3911

Для начала — аппарат настраивается не через web-интерфейс, а через tftp. Соответственно на сетевом оборудовании должна быть настроена опция 66 и открыт порт 69 на сервере tftp.
Подключаем аппарат в сеть и дожидаемся получения им ip-адреса. После того как аппарат запустится он начнет слать запросы на сервер за файлом конфигураций, соответственно он там должен быть в виде SEP<MAC>.cnf.xml (без <>).
С данным аппаратом необходимо помнить, что он не отправляет на сервер пароль, а только номер и контакт, соответственно на сервере у внутреннего номера необходимо убрать пароль и желательно задать permit конкретно для данного аппарата.

Конфигурация sip.conf

В файле конфигураций меняем значения:

<callManager>
<name>ip Asterisk</name>
<processNodeName>ip Asterisk</processNodeName>
<ports>
<ethernetPhonePort>2000</ethernetPhonePort>
<sipPort>5060</sipPort>
<securedSipPort>5061</securedSipPort>
<mgcpPorts>
<listen>2427</listen>
<keepAlive>2428</keepAlive>
</mgcpPorts>
</ports>
<processNodeName>192.168.254.254</processNodeName>
</callManager>

В блоке Line:

<name>PHONE_NUMBER</name>
<contact>PHONE_NUMBER</contact>
<loadInformation>нужная_прошивка</loadInformation>

В блоке локализации:

<name>Russian_Russian_Federation</name>
<uid>5</uid>
<langCode>ru_RU</langCode>
<version>8.6.2.1000-1</version>
<winCharSet>windows-1251</winCharSet>
</userLocale>

Так же в файле XMLDefault.cnf.xml указать:

<autoRegistrationName>AUTO-REG</autoRegistrationName>
<autoRegistration>enabled</autoRegistration>
<ipAddressMode>0</ipAddressMode>

Если в поле <tzupdater></tzupdater> указан файл часовых поясов то телефон его запросит.

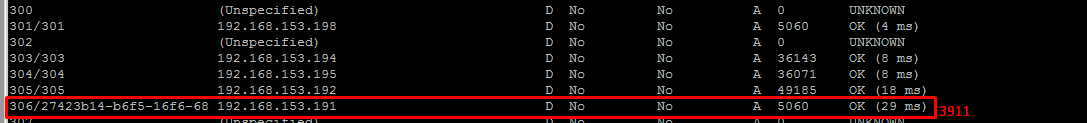

Статус внутреннего абонента

Пример конфигурации:

<?xml version=»1.0″ encoding=»UTF-8″?>
<device xsi:type=»axl:XIPPhone» ctiid=»447″ uuid=»{866e04a3-a5be-6f4b-65b5-30120a833869}»>
<fullConfig>true</fullConfig>
<deviceProtocol>SIP</deviceProtocol>
<sshUserId></sshUserId>
<sshPassword></sshPassword>
<ipAddressMode>0</ipAddressMode>
<allowAutoConfig>true</allowAutoConfig>
<ipPreferenceModeControl>0</ipPreferenceModeControl>
<tzdata>
<tzolsonversion>2011h</tzolsonversion>
<tzupdater>tzdatacsv.csv</tzupdater>
</tzdata>
<devicePool uuid=»{1b1b9eb6-7803-11d3-bdf0-00108302ead1}»>
<revertPriority>0</revertPriority>
<name>ARMO</name>
<dateTimeSetting uuid=»{9ec4850a-7748-11d3-bdf0-00108302ead1}»>
<name>CMLocal</name>
<dateTemplate>M/D/Y</dateTemplate>
<timeZone></timeZone>
<olsonTimeZone>Etc/GMT-3</olsonTimeZone>
</dateTimeSetting>
<callManagerGroup>
<name>Default</name>
<tftpDefault>true</tftpDefault>
<members>
<member priority=»0″>
<callManager>
<name>ip Asterisk</name>
<description>description</description>
<ports>
<ethernetPhonePort>2000</ethernetPhonePort>
<sipPort>5060</sipPort>
<securedSipPort>5061</securedSipPort>
<mgcpPorts>
<listen>2427</listen>
<keepAlive>2428</keepAlive>
</mgcpPorts>
</ports>
<processNodeName>ip Asterisk</processNodeName>
</callManager>
</member>
</members>
</callManagerGroup>
<srstInfo uuid=»{cd241e11-4a58-4d3d-9661-f06c912a18a3}»>
<name>Disable</name>
<srstOption>Disable</srstOption>
<userModifiable>false</userModifiable>
<ipAddr1></ipAddr1>
<port1>2000</port1>
<ipAddr2></ipAddr2>
<port2>2000</port2>
<ipAddr3></ipAddr3>
<port3>2000</port3>
<sipIpAddr1></sipIpAddr1>
<sipPort1>5060</sipPort1>
<sipIpAddr2></sipIpAddr2>
<sipPort2>5060</sipPort2>
<sipIpAddr3></sipIpAddr3>
<sipPort3>5060</sipPort3>
<isSecure>false</isSecure>
</srstInfo>
<mlppDomainId>-1</mlppDomainId>
<mlppIndicationStatus>Off</mlppIndicationStatus>
<preemption>Disabled</preemption>
<connectionMonitorDuration>120</connectionMonitorDuration>
</devicePool>
<sipProfile>
<sipProxies>
<backupProxy>USECALLMANAGER</backupProxy>
<backupProxyPort>5060</backupProxyPort>
<emergencyProxy>USECALLMANAGER</emergencyProxy>
<emergencyProxyPort>5060</emergencyProxyPort>
<outboundProxy>USECALLMANAGER</outboundProxy>
<outboundProxyPort>5060</outboundProxyPort>
<registerWithProxy>true</registerWithProxy>
</sipProxies>
<sipCallFeatures>
<cnfJoinEnabled>true</cnfJoinEnabled>
<callForwardURI>x-cisco-serviceuri-cfwdall</callForwardURI>
<callPickupURI>x-cisco-serviceuri-pickup</callPickupURI>
<callPickupListURI>x-cisco-serviceuri-opickup</callPickupListURI>
<callPickupGroupURI>x-cisco-serviceuri-gpickup</callPickupGroupURI>
<meetMeServiceURI>x-cisco-serviceuri-meetme</meetMeServiceURI>
<abbreviatedDialURI>x-cisco-serviceuri-abbrdial</abbreviatedDialURI>
<rfc2543Hold>false</rfc2543Hold>
<callHoldRingback>2</callHoldRingback>
<localCfwdEnable>true</localCfwdEnable>
<semiAttendedTransfer>true</semiAttendedTransfer>
<anonymousCallBlock>2</anonymousCallBlock>
<callerIdBlocking>2</callerIdBlocking>
<dndControl>0</dndControl>
<remoteCcEnable>true</remoteCcEnable>
<retainForwardInformation>false</retainForwardInformation>
</sipCallFeatures>
<sipStack>
<sipInviteRetx>6</sipInviteRetx>
<sipRetx>10</sipRetx>
<timerInviteExpires>180</timerInviteExpires>
<timerRegisterExpires>3600</timerRegisterExpires>
<timerRegisterDelta>5</timerRegisterDelta>
<timerKeepAliveExpires>120</timerKeepAliveExpires>
<timerSubscribeExpires>120</timerSubscribeExpires>
<timerSubscribeDelta>5</timerSubscribeDelta>
<timerT1>500</timerT1>
<timerT2>4000</timerT2>
<maxRedirects>70</maxRedirects>
<remotePartyID>true</remotePartyID>
<userInfo>None</userInfo>
</sipStack>
<autoAnswerTimer>1</autoAnswerTimer>
<autoAnswerAltBehavior>false</autoAnswerAltBehavior>
<autoAnswerOverride>true</autoAnswerOverride>
<transferOnhookEnabled>false</transferOnhookEnabled>
<enableVad>false</enableVad>
<preferredCodec>none</preferredCodec>
<dtmfAvtPayload>101</dtmfAvtPayload>
<dtmfDbLevel>3</dtmfDbLevel>
<dtmfOutofBand>avt</dtmfOutofBand>
<kpml>3</kpml>
<phoneLabel></phoneLabel>
<stutterMsgWaiting>2</stutterMsgWaiting>
<callStats>true</callStats>
<offhookToFirstDigitTimer>15000</offhookToFirstDigitTimer>
<T302Timer>5000</T302Timer>
<silentPeriodBetweenCallWaitingBursts>10</silentPeriodBetweenCallWaitingBursts>
<disableLocalSpeedDialConfig>true</disableLocalSpeedDialConfig>
<poundEndOfDial>false</poundEndOfDial>
<startMediaPort>16384</startMediaPort>
<stopMediaPort>32766</stopMediaPort>
<sipLines>
<line button=»1″ lineIndex=»1″>
<featureID>9</featureID>
<featureLabel></featureLabel>
<proxy>USECALLMANAGER</proxy>
<port>5060</port>
<name>PHONE_NUMBER</name>
<displayName>Server-room</displayName>
<autoAnswer>
<autoAnswerEnabled>2</autoAnswerEnabled>
</autoAnswer>
<callWaiting>3</callWaiting>
<sharedLine>false</sharedLine>
<messageWaitingLampPolicy>3</messageWaitingLampPolicy>
<messageWaitingAMWI>0</messageWaitingAMWI>
<messagesNumber></messagesNumber>
<ringSettingIdle>4</ringSettingIdle>
<ringSettingActive>5</ringSettingActive>
<contact>PHONE_NUMBER</contact>
<forwardCallInfoDisplay>
<callerName>true</callerName>
<callerNumber>false</callerNumber>
<redirectedNumber>false</redirectedNumber>
<dialedNumber>true</dialedNumber>
</forwardCallInfoDisplay>
<maxNumCalls>2</maxNumCalls>
<busyTrigger>2</busyTrigger>
</line>
</sipLines>
<externalNumberMask></externalNumberMask>
<voipControlPort>5060</voipControlPort>
<dscpForAudio>184</dscpForAudio>
<dscpVideo>136</dscpVideo>
<dscpForTelepresence>128</dscpForTelepresence>
<ringSettingBusyStationPolicy>0</ringSettingBusyStationPolicy>
<dialTemplate></dialTemplate>
<softKeyFile>SK72f64050-7ad5-4b47-9bfa-5e9ad9cd4aa9.xml</softKeyFile>
<alwaysUsePrimeLine>false</alwaysUsePrimeLine>
<alwaysUsePrimeLineVoiceMail>false</alwaysUsePrimeLineVoiceMail>
</sipProfile>
<commonProfile>
<phonePassword></phonePassword>
<backgroundImageAccess>true</backgroundImageAccess>
<callLogBlfEnabled>2</callLogBlfEnabled>
</commonProfile>
<loadInformation>SIP3951.8-1-4a</loadInformation>
<vendorConfig>
<garp>0</garp><webAccess>0</webAccess><telnetAccess>1</telnetAccess></vendorConfig>
<versionStamp>1414440411-a9483054-76fe-4213-b907-0b45dc1edda4</versionStamp>
<userLocale>
<name>Russian_Russian_Federation</name>
<uid>5</uid>
<langCode>ru_RU</langCode>
<version>8.6.2.1000-1</version>
<winCharSet>windows-1251</winCharSet>
</userLocale>
<networkLocale>Russian_Federation</networkLocale>
<networkLocaleInfo>
<name>Russian_Federation</name>
<uid>50</uid>
<version></version>
</networkLocaleInfo>
<dscpForSCCPPhoneConfig>96</dscpForSCCPPhoneConfig>
<dscpForSCCPPhoneServices>0</dscpForSCCPPhoneServices>
<dscpForCm2Dvce>96</dscpForCm2Dvce>
<transportLayerProtocol>2</transportLayerProtocol>
<dndCallAlert>5</dndCallAlert>
<phonePersonalization>0</phonePersonalization>
<rollover>0</rollover>
<singleButtonBarge>0</singleButtonBarge>
<joinAcrossLines>0</joinAcrossLines>
<autoCallPickupEnable>false</autoCallPickupEnable>
<blfAudibleAlertSettingOfIdleStation>0</blfAudibleAlertSettingOfIdleStation>
<blfAudibleAlertSettingOfBusyStation>0</blfAudibleAlertSettingOfBusyStation>
<capfAuthMode>0</capfAuthMode>
<capfList>
<capf>
<phonePort>3804</phonePort>
<processNodeName></processNodeName>
</capf>
</capfList>
<certHash></certHash>
<encrConfig>false</encrConfig>
<advertiseG722Codec>1</advertiseG722Codec>
<mobility>
<handoffdn></handoffdn>
<dtmfdn></dtmfdn>
<ivrdn></ivrdn>
<dtmfHoldCode>*81</dtmfHoldCode>
<dtmfExclusiveHoldCode>*82</dtmfExclusiveHoldCode>
<dtmfResumeCode>*83</dtmfResumeCode>
<dtmfTxfCode>*84</dtmfTxfCode>
<dtmfCnfCode>*85</dtmfCnfCode>
</mobility>
<userId></userId>
<phoneServices useHTTPS=»true»>
<provisioning>0</provisioning>
<phoneService type=»1″ category=»0″>
<name>Missed Calls</name>
<url>Application:Cisco/MissedCalls</url>
<vendor></vendor>
<version></version>
</phoneService>
<phoneService type=»2″ category=»0″>
<name>Voicemail</name>
<url>Application:Cisco/Voicemail</url>
<vendor></vendor>
<version></version>
</phoneService>
<phoneService type=»1″ category=»0″>
<name>Received Calls</name>
<url>Application:Cisco/ReceivedCalls</url>
<vendor></vendor>
<version></version>
</phoneService>
<phoneService type=»1″ category=»0″>
<name>Placed Calls</name>
<url>Application:Cisco/PlacedCalls</url>
<vendor></vendor>
<version></version>
</phoneService>
<phoneService type=»1″ category=»0″>
<name>Personal Directory</name>
<url>Application:Cisco/PersonalDirectory</url>
<vendor></vendor>
<version></version>
</phoneService>
<phoneService type=»1″ category=»0″>
<name>Corporate Directory</name>
<url>Application:Cisco/CorporateDirectory</url>
<vendor></vendor>
<version></version>
</phoneService>
</phoneServices>
</device>
